Description
Condition: Used
Enclosure Type: DP (Drip-Proof)
Model: C145T17DB56B
Country/Region of Manufacture: United States
NEMA Design Letter: Design B (General Purpose)
Full Load Amps: 4.4
NEMA Frame Suffix: T
AC Frequency Rating: 60 Hz
Current Type: AC
AC Phase: Three Phase
MPN: G120011.00
Rated Load (HP): 1 1/2
Brand: LEESON
Nominal Rated Input Voltage: 208-230/460 V
Service Factor: 1.15
Base RPM: 1800

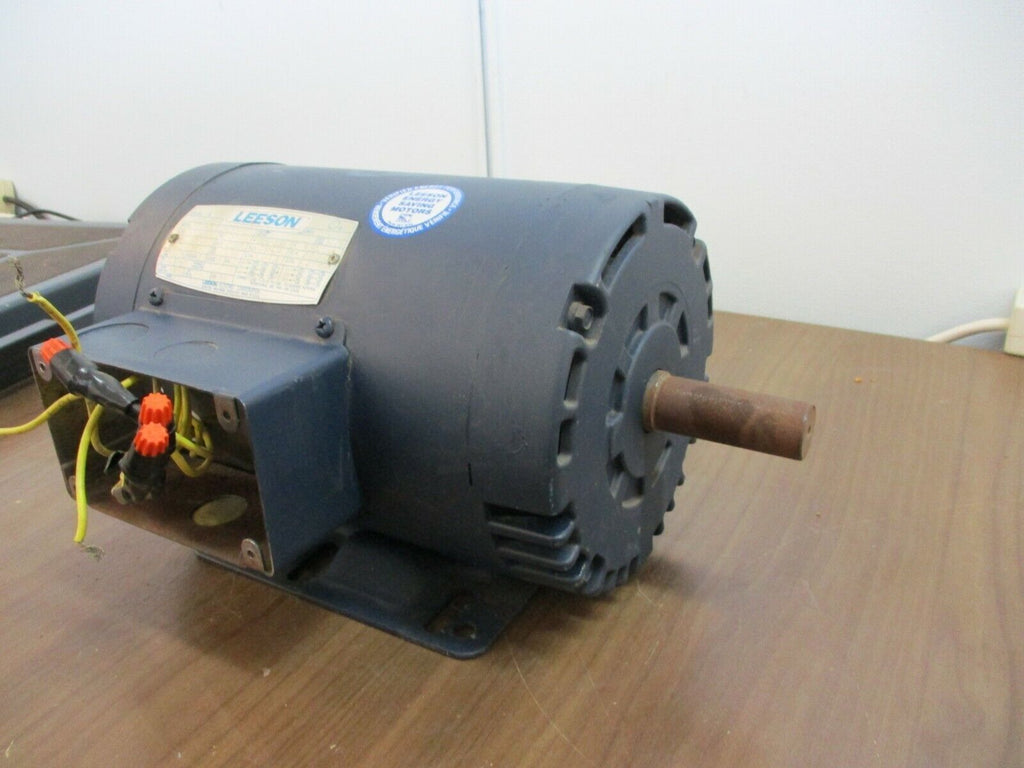

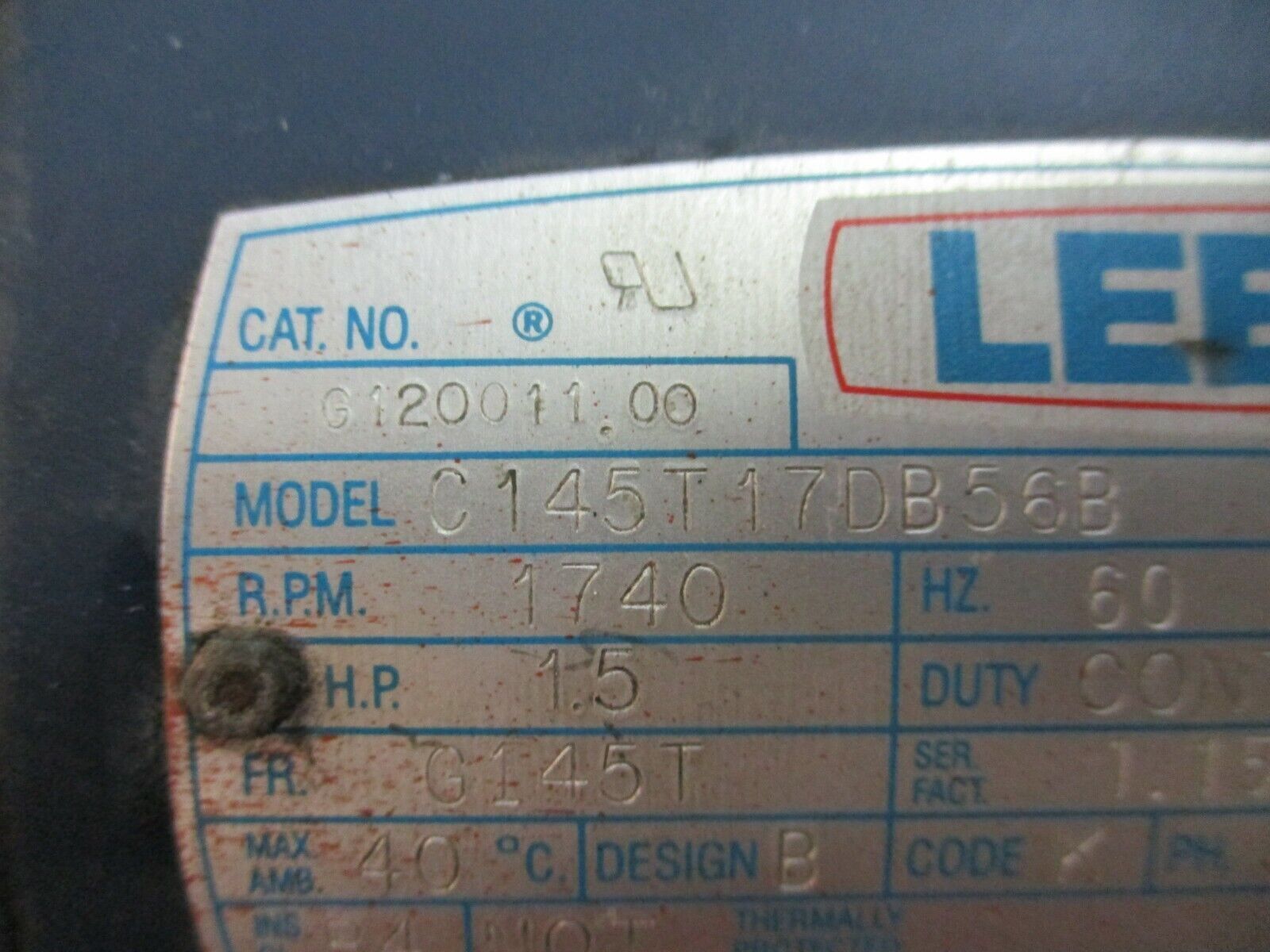

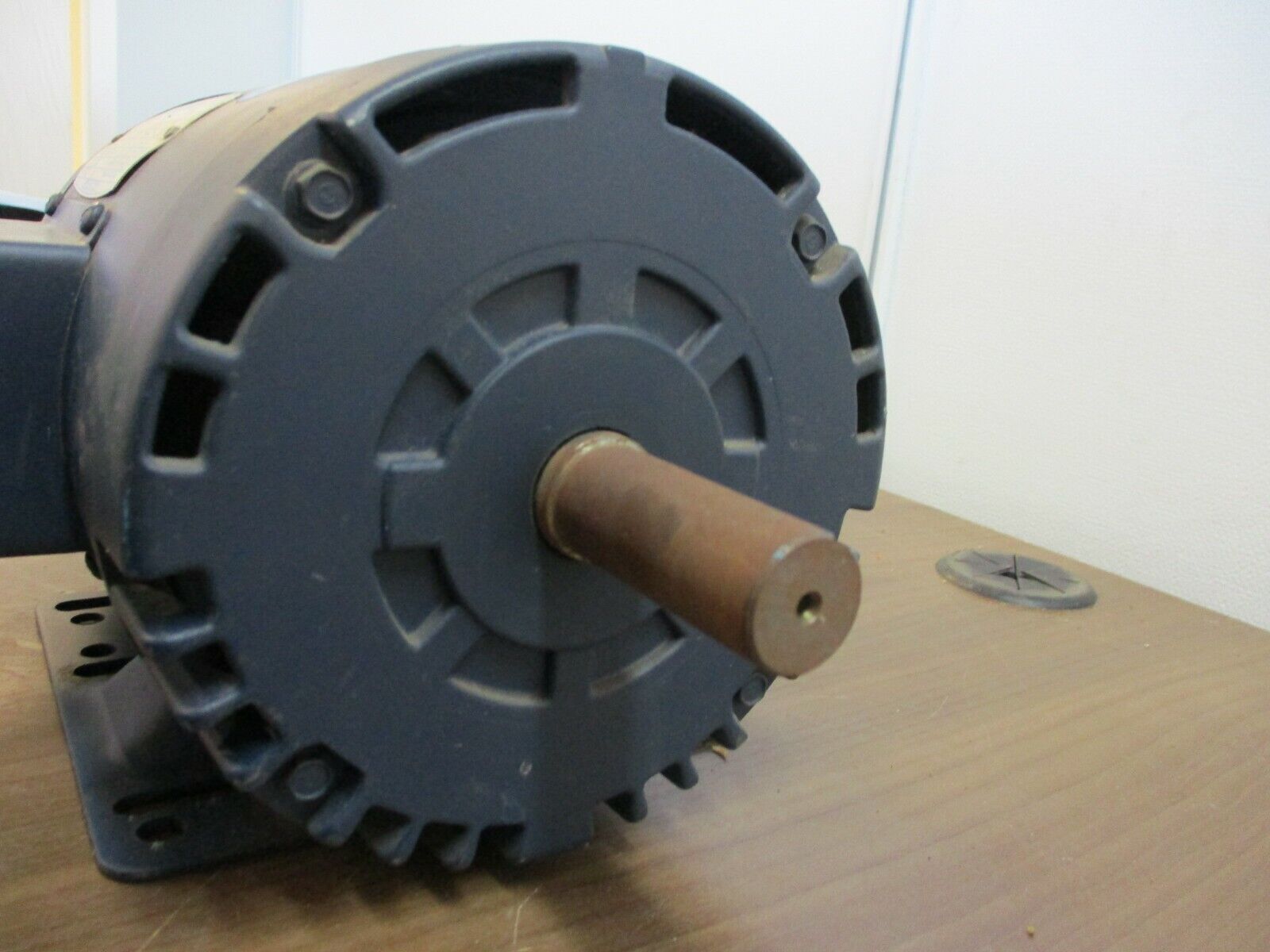

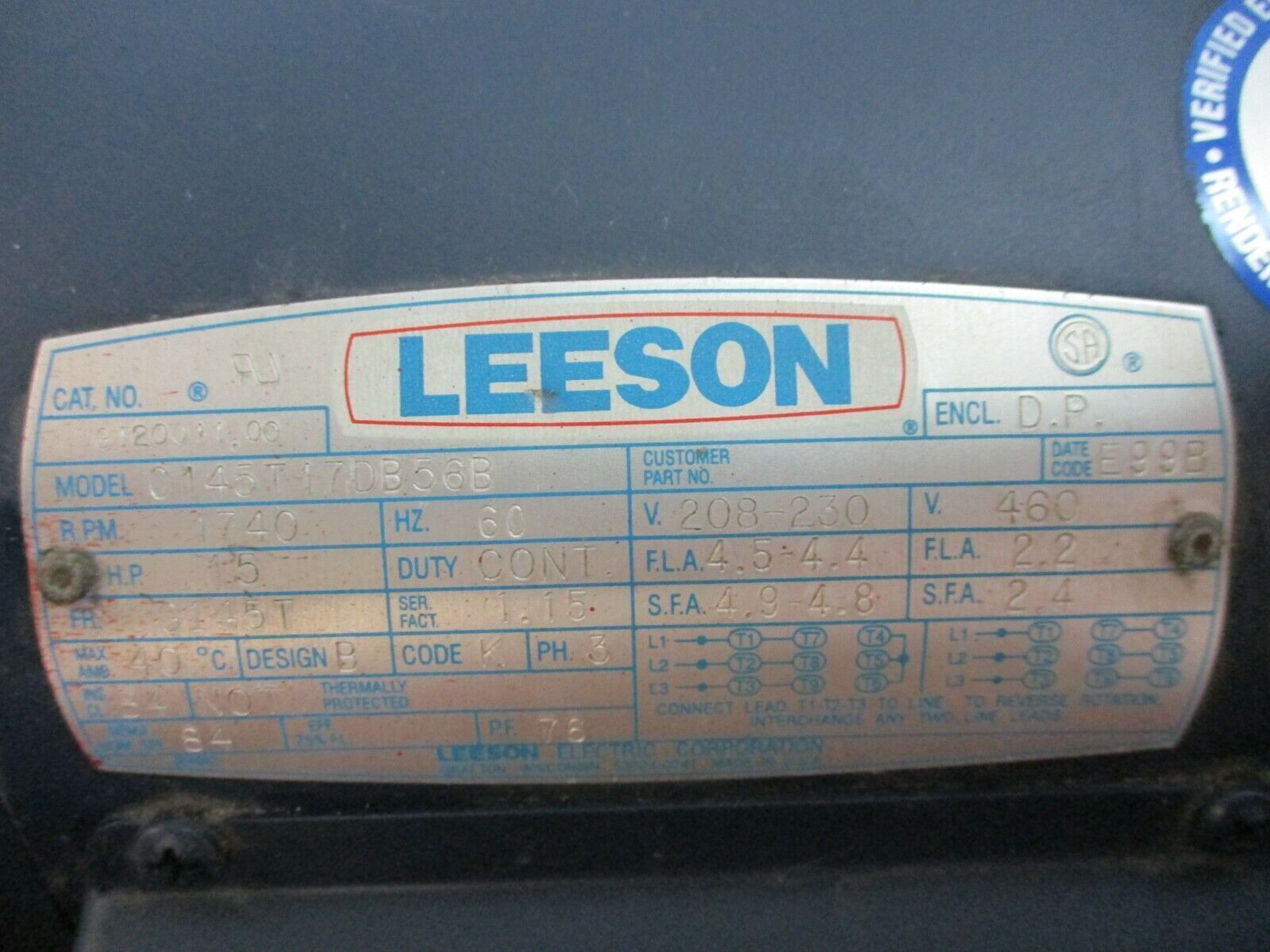

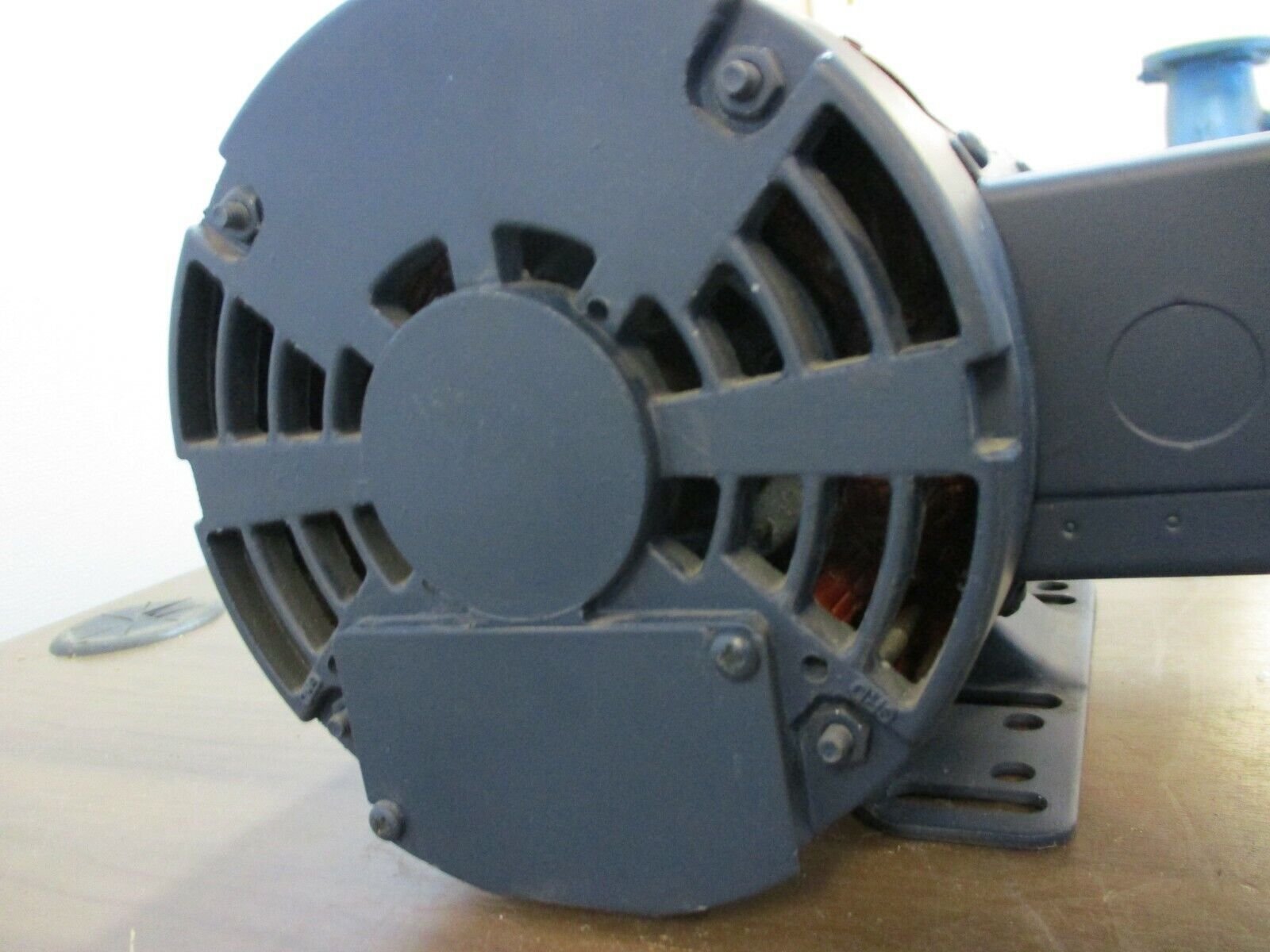

Leeson AC Motor G120011.00 1.5HP 1800 RPM 208-230/460V 2.2/4.4A 3Ph 60Hz Used
Leeson AC Motor Part#: G120011.00 1.5HP 1740 RPM 208-230/460V 2.2/4.4A 3Ph 60Hz *No Terminal Box Cover*Used loc: AB11-1949 / AB36I2- Part#: G120011.00
- 1.5HP 1740 RPM
- 208-230/460V
- 2.2/4.4A
- 3Ph
- 60Hz

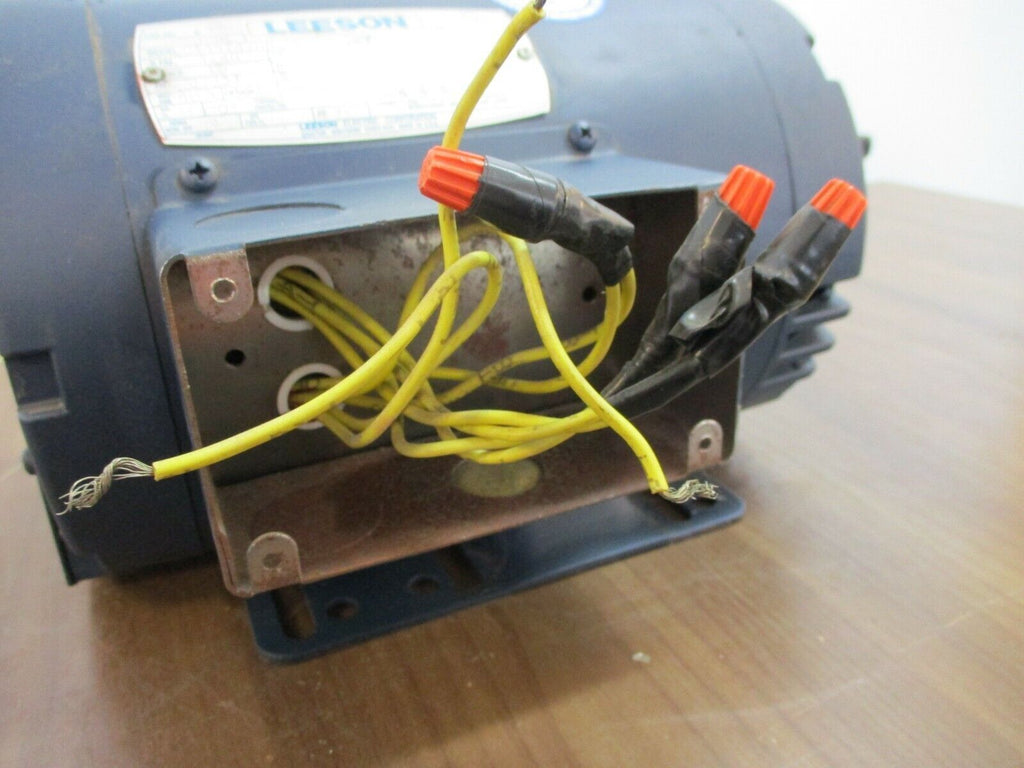

- *No Terminal Box Cover*
Uséd
loc: AB11-1949 / AB36I2
