Description
Condition: Used
Brand: WEG
Current Type: AC
Rated Load (HP): 10
NEMA Design Letter: Design B (General Purpose)
AC Frequency Rating: 60 Hz
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
IP Rating: IP55
Service Factor: 1.25
Nominal Rated Input Voltage: 230 V,460 V
MPN: 01009ET3E284T-W22
Insulation Class: F (Max 311°F)
AC Phase: Three Phase

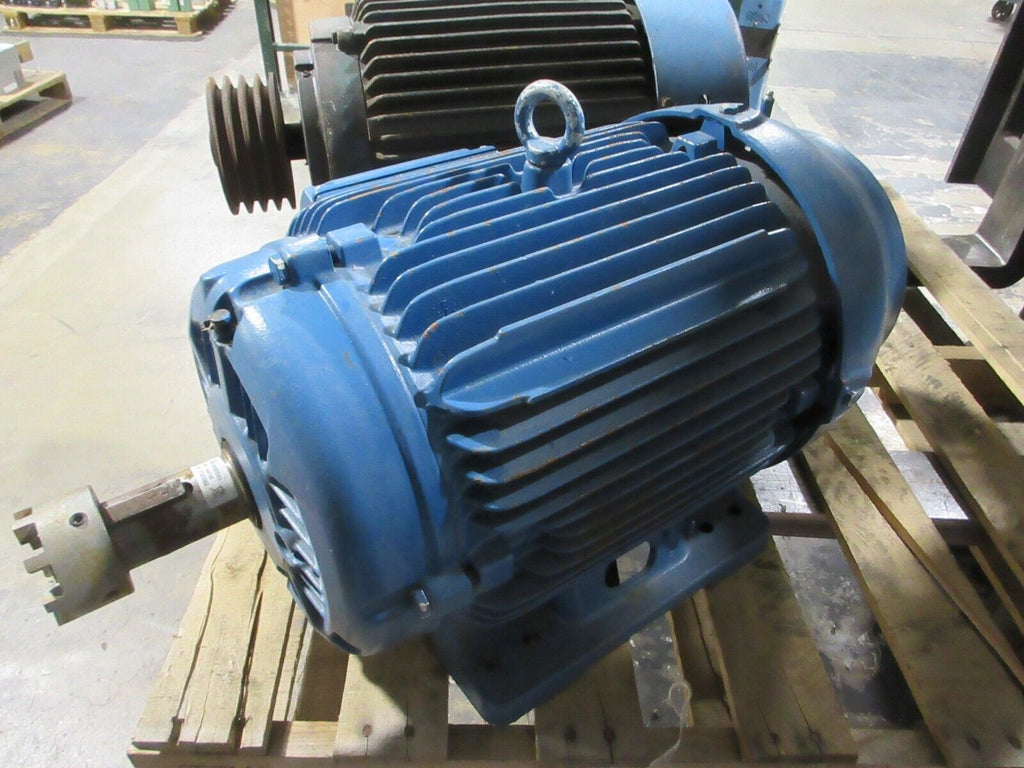

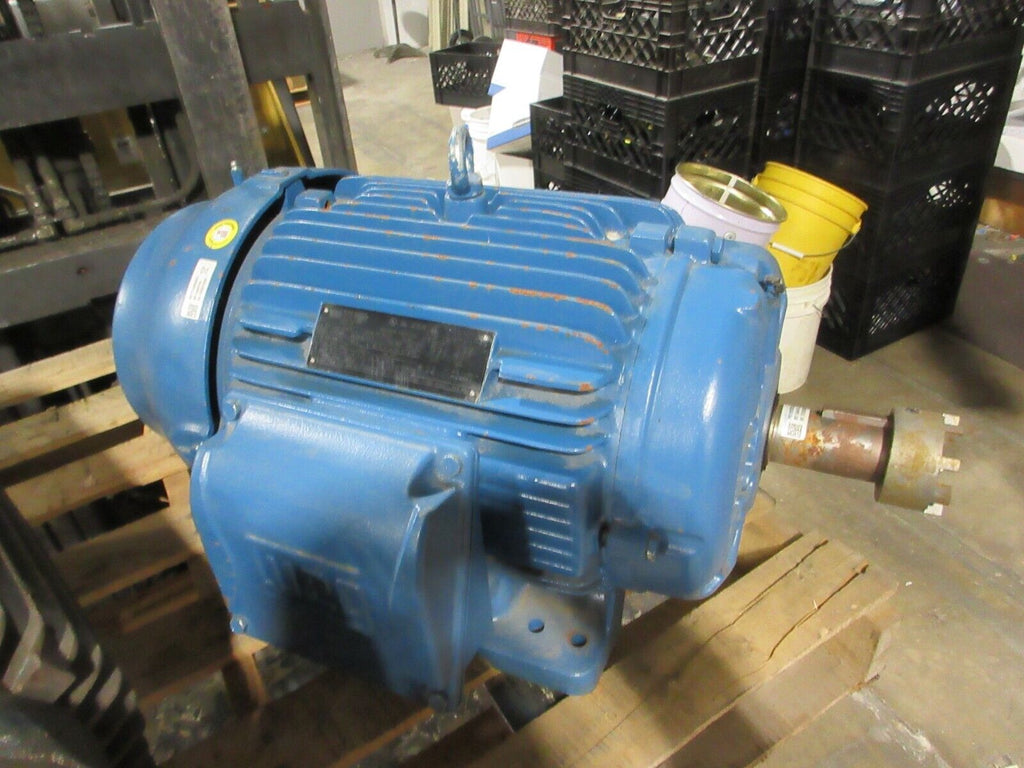

WEG AC Motor 01009ET3E284T-W22 10HP 880RPM 230/460V 3Ph 60Hz 284/6T Frame Used
Condition: UsedBrand: WEGCurrent Type: ACRated Load (HP): 10NEMA Design Letter: Design B (General Purpose)AC Frequency Rating: 60 HzEnclosure Type: TEFC (Totally Enclosed Fan Cooled)IP Rating: IP55Service Factor: 1.25Nominal Rated Input Voltage: 230 V,460 VMPN: 01009ET3E284T-W22Insulation Class: F (Max 311°F)AC Phase: Three Phase WEG AC Motor Part #: 01009ET3E284T-W22 10HP 880RPM 230/460V 3Ph 60Hz 284/6T Frame TEFC Enclosure Used Weight: 425 lbs.LOC AB11-0021You may also like
