Description
Condition: Used
AC Frequency Rating: 60 Hz
AC Motor Type: Induction/Asynchronous
AC Phase: Three Phase
Actual Rated Input Voltage: 230/460 V
Base RPM: 1200 RPM
Brand: Westinghouse
Enclosure Type: ODP (Open Drip-Proof)
Full Load Amps: 20.2 / 10.1 A
IEC Frame Size: 254
Insulation Class: F (Max 311°F)
MPN: DTP7/56
NEMA Design Letter: Design B (General Purpose)
NEMA Frame Suffix: T
Rated Load (HP): 7 1/2
Service Factor: 1.15

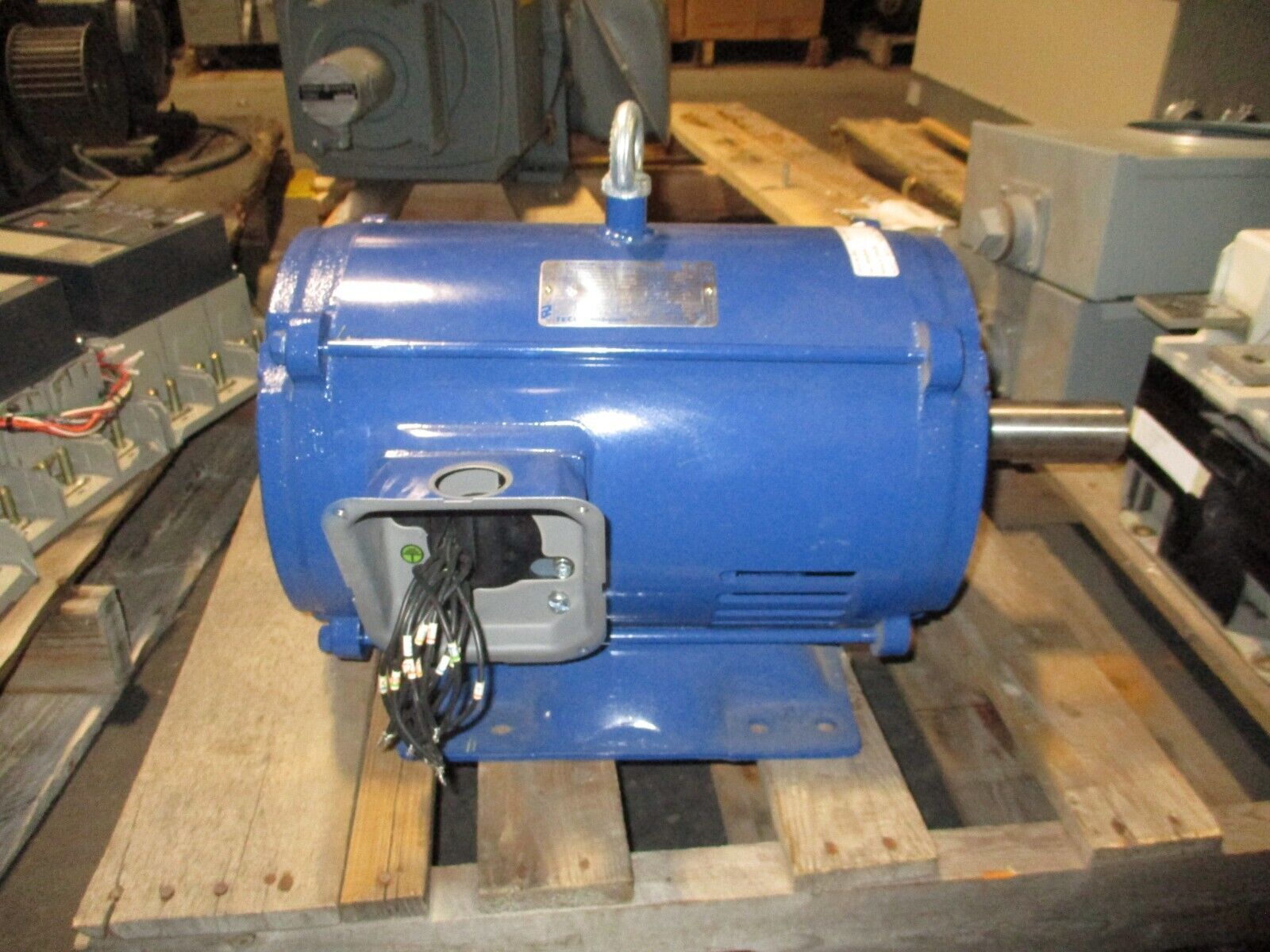

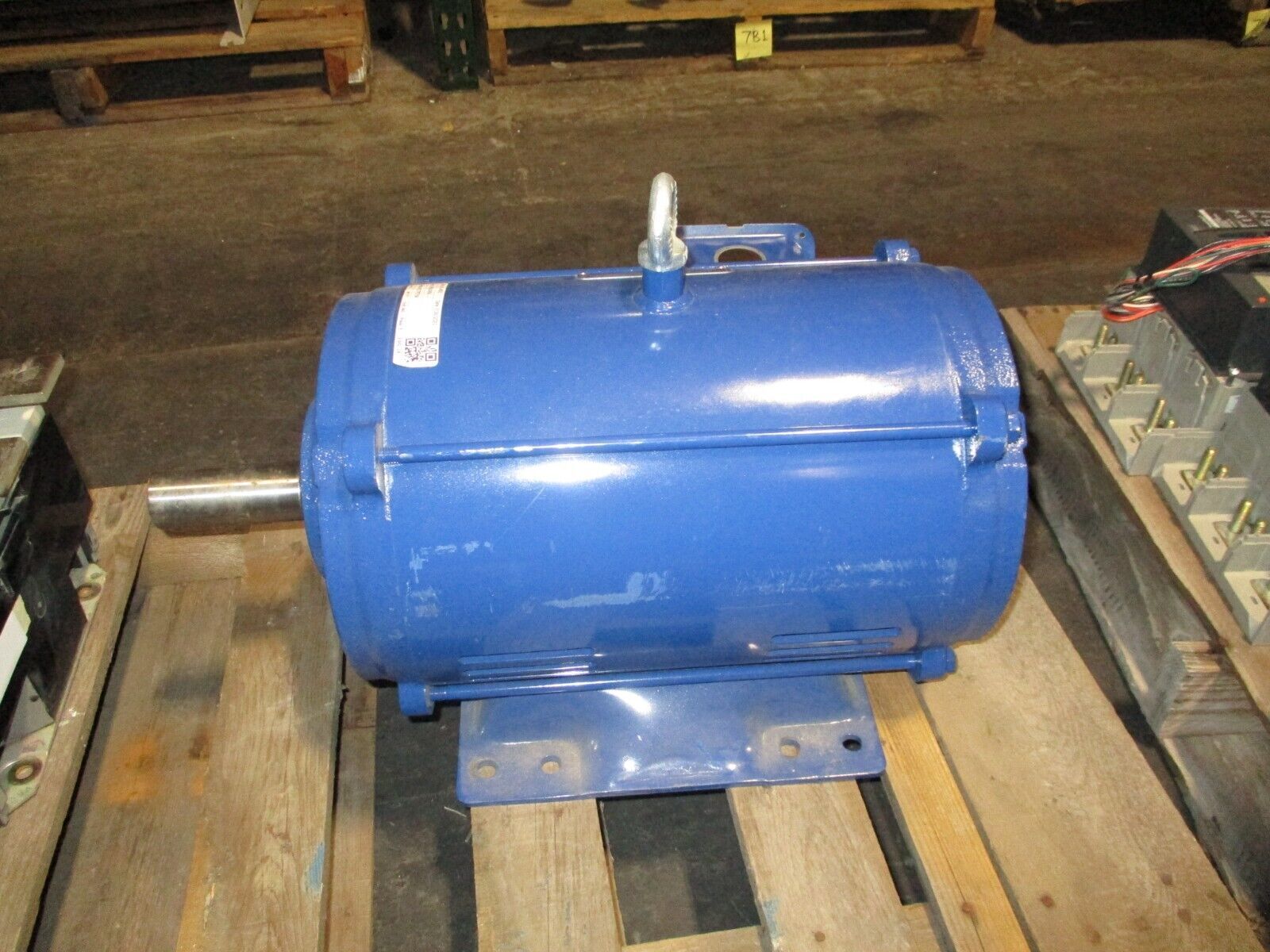

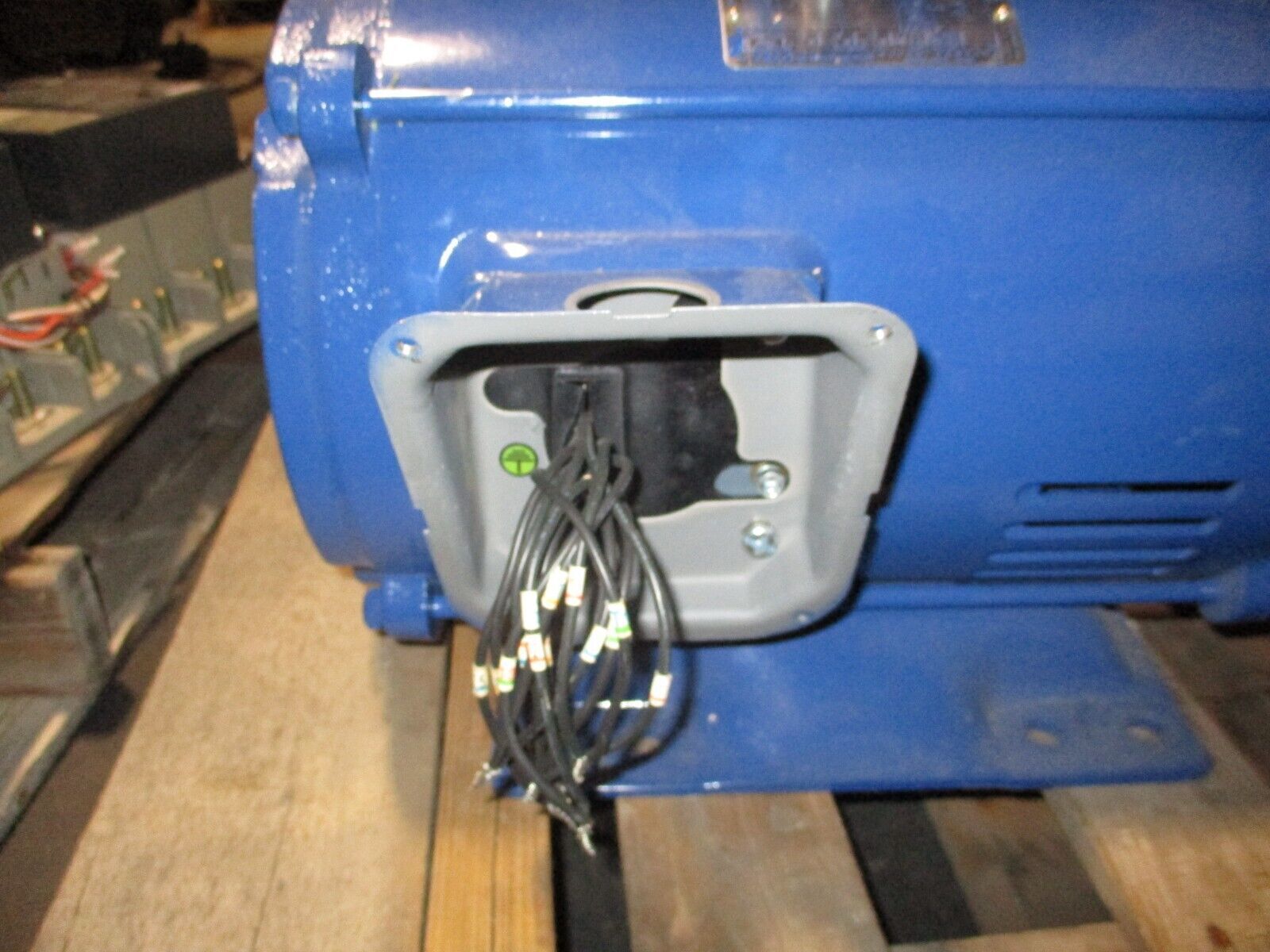

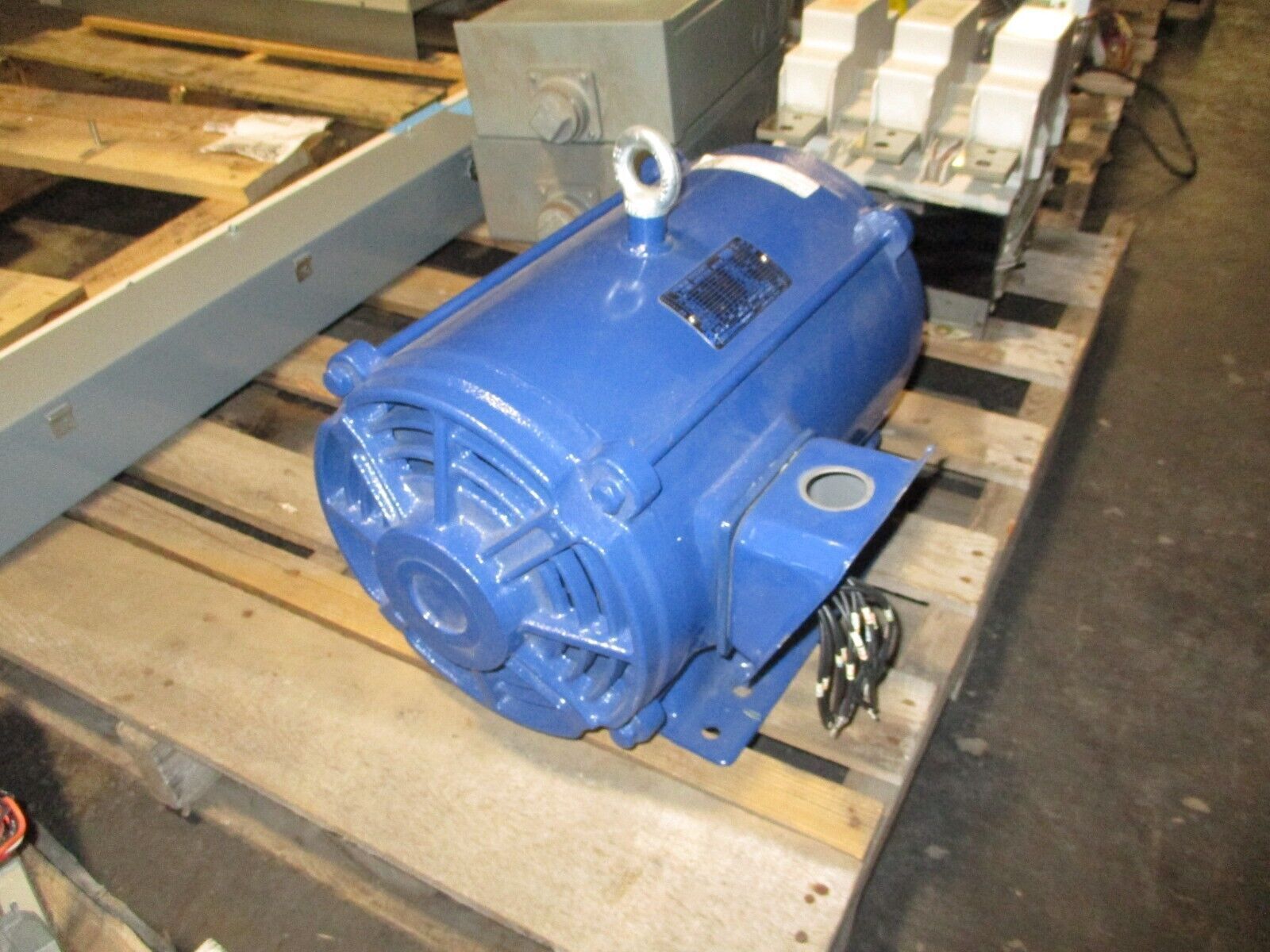

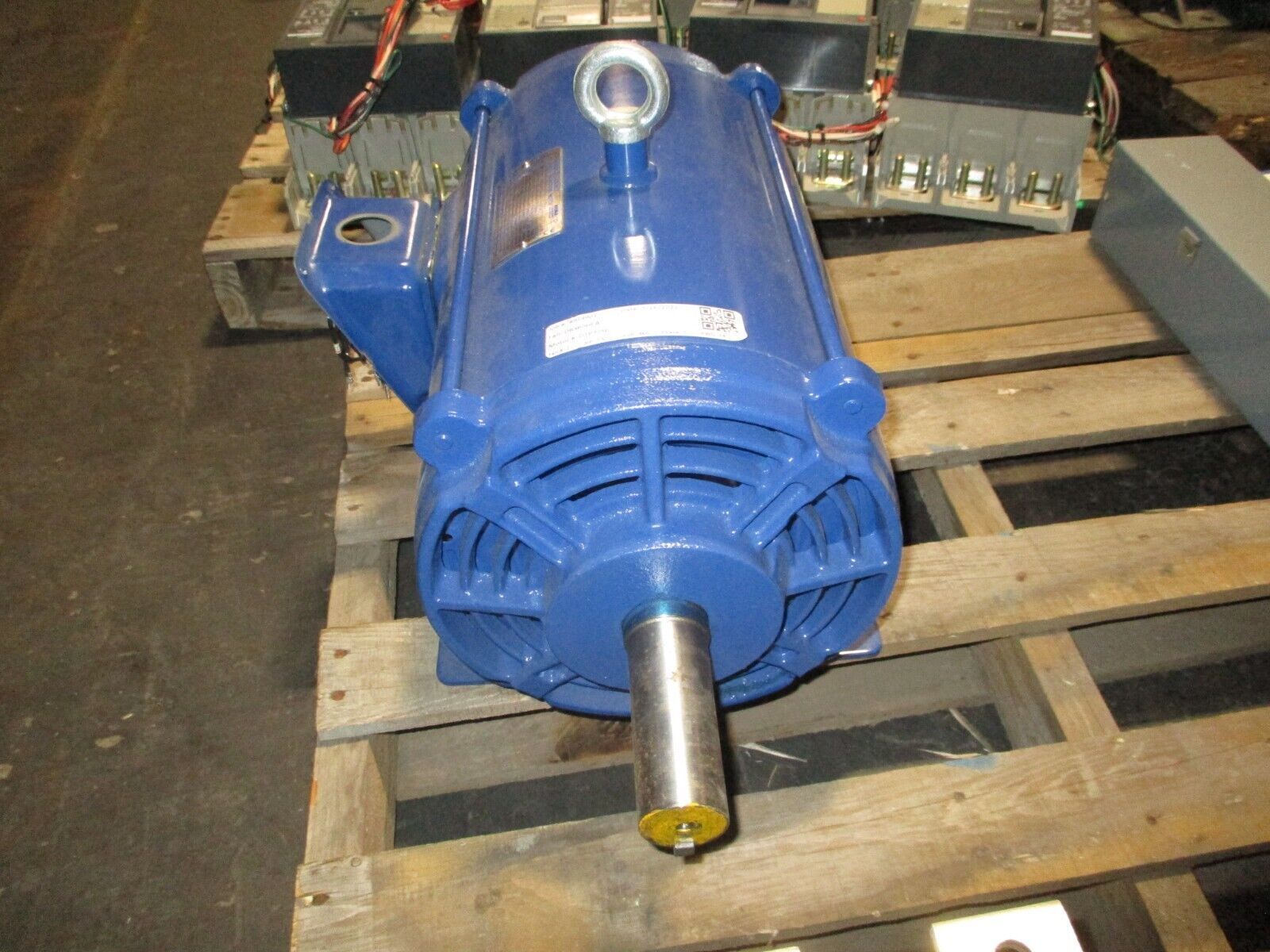

Westinghouse Induction Motor DTP7/56 7.5HP 1200RPM 203/460V 20.2/10.1A 3Ph 60Hz
Condition: UsedActual Rated Input Voltage: 230/460 VFull Load Amps: 20.2 / 10.1 ARated Load (HP): 7 1/2IEC Frame Size: 254NEMA Design Letter: Design B (General Purpose)AC Frequency Rating: 60 HzEnclosure Type: ODP (Open Drip-Proof)Base RPM: 1200 RPMAC Motor Type: Induction/AsynchronousMPN: DTP7/56Insulation Class: F (Max 311°F)Brand: WestinghouseService Factor: 1.15AC Phase: Three PhaseNEMA Frame Suffix: TWestinghouse Induction Motor Part #: DTP7/56 7.5 HP 1170 RPM 203/460 V 20.2 / 10.1 A 3Ph 60 Hz *Missing Junction Box Cover* Weighs: 195 LBS Used Loc: AB11-7064You may also like
